Building a Fully Secure Architecture Integrating Azure OpenAI with APIM, Private Endpoints, and Applications

Dellenny

As AI adoption accelerates, organizations must ensure that AI services are secure, scalable, and compliant with enterprise security policies. Azure OpenAI Service provides powerful AI capabilities, but securing access to it is crucial when integrating with applications. In this blog, we will explore how to build a fully secure architecture by integrating Azure OpenAI Service with Azure API Management (APIM), Private Endpoints, and Applications.

Architecture Overview

The architecture consists of the following key components:

  1. Azure OpenAI Service – Provides AI capabilities such as GPT and embedding models.
  2. Azure API Management (APIM) – Acts as a secure gateway to manage API access and policies.
  3. Private Endpoints – Ensures that API traffic remains within the organization’s private network.
  4. Application (Web, Mobile, or Backend Services) – Consumes AI services securely via APIM.

1. Securing Azure OpenAI with Private Endpoints

By default, Azure OpenAI exposes a public endpoint. To ensure that all communications occur within a private network, a Private Endpoint should be configured. This allows resources within the same Virtual Network (VNet) to access OpenAI securely without internet exposure.

Steps to Implement Private Endpoint:

  • Navigate to the Azure OpenAI Service in the Azure Portal.
  • Enable Private Endpoint under Networking settings.
  • Associate the Private Endpoint with an Azure Virtual Network (VNet).
  • Configure Private DNS Zone to resolve the service privately.

2. Exposing OpenAI Securely via Azure API Management

Azure API Management (APIM) provides a centralized API gateway for managing, securing, and monitoring API traffic. By integrating Azure OpenAI with APIM, organizations can:

  • Control Access – Apply authentication and authorization policies.
  • Rate Limit & Throttling – Protect against API abuse.
  • Monitor & Log Requests – Gain insights using Azure Monitor and Application Insights.

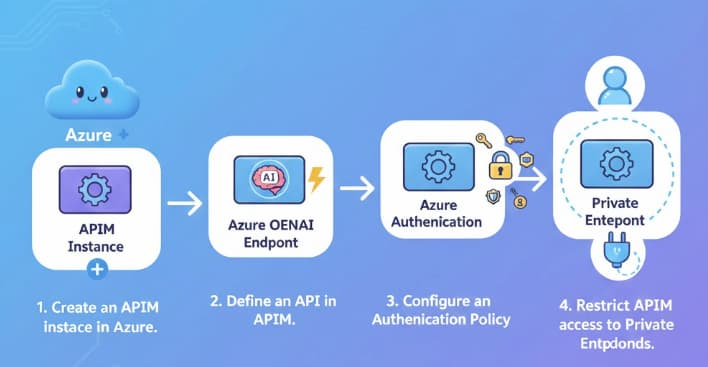

Steps to Integrate Azure OpenAI with APIM:

  • Create an APIM instance in Azure.
  • Define an API in APIM pointing to the Azure OpenAI endpoint.
  • Configure an Authentication Policy (e.g., OAuth 2.0, Managed Identity, or API Key).
  • Restrict APIM access to Private Endpoints only.

3. Connecting the Application Securely

Once APIM and Private Endpoints are in place, the Application (whether Web, Mobile, or Backend service) should access OpenAI via APIM.

Best Practices for Secure Application Integration:

  • Use Managed Identities: Avoid hardcoding credentials and leverage Azure Managed Identity for authentication.
  • Restrict API Access: Ensure that only trusted applications and users can call the API.
  • Implement Network Security Groups (NSGs): Restrict inbound and outbound traffic to only approved resources.
  • Enable Logging & Monitoring: Use Azure Monitor, Log Analytics, and Application Insights for security audits and anomaly detection.

4. Enforcing Zero Trust Security

A Zero Trust model ensures that no entity is trusted by default, even inside the corporate network. To enhance security, implement:

  • Conditional Access Policies – Restrict API access based on user identity and device.
  • Just-in-Time (JIT) Access – Grant temporary API access for specific use cases.
  • Encryption in Transit & At Rest – Ensure all API traffic is encrypted using TLS 1.2+.
  • DDoS Protection – Use Azure DDoS Protection to safeguard against attacks.

Key Takeaways:

✅ Use Private Endpoints to keep API traffic within a secure network.
✅ Leverage APIM to manage access, rate limits, and authentication.
✅ Secure the Application with managed identities and restricted network access.
✅ Adopt a Zero Trust Model to enforce security at every layer.

By following these best practices, organizations can safely leverage Azure OpenAI while ensuring top-tier security and compliance.
