Federated Identity in Azure Seamless Access with External Identity Providers

As organizations increasingly adopt hybrid and multi-cloud environments, managing user identities and enabling secure access across various systems becomes more complex—and more critical. This is where the Federated Identity pattern comes into play, particularly in Microsoft Azure, which offers robust support for integrating external identity providers through protocols like OAuth and SAML.

In this blog, we’ll explore what federated identity is, how it works in Azure, and the benefits of using external identity providers for authentication.

🔍 What Is Federated Identity?

Federated Identity is an authentication pattern that allows users to log in to one system using credentials from another trusted system, often called an external identity provider (IdP). Instead of managing multiple usernames and passwords across applications, users authenticate through a central identity provider using open standards like:

OAuth 2.0 (Authorization Framework)
SAML 2.0 (Security Assertion Markup Language)
OpenID Connect (Built on OAuth 2.0 for authentication)

This approach decouples authentication from application logic and centralizes identity management, improving security and user experience.

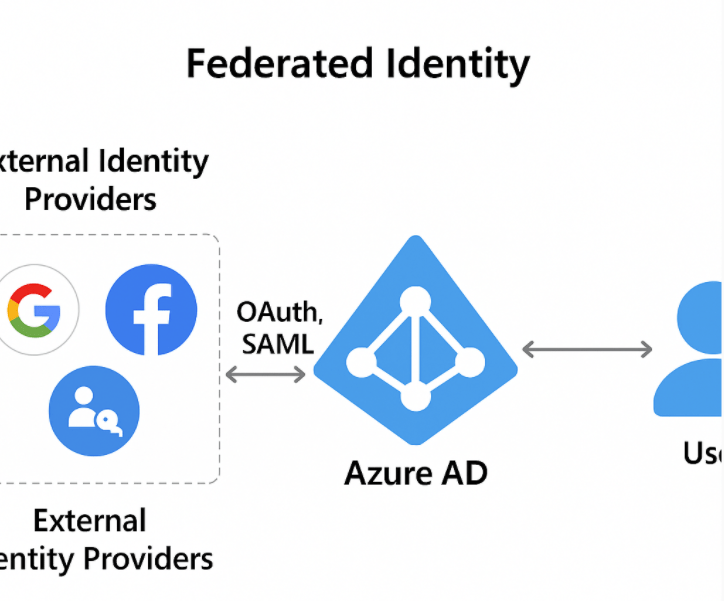

🧭 How Federated Identity Works in Azure

In Azure, federated identity is commonly implemented through Azure Active Directory (Azure AD), now evolving into Microsoft Entra ID. Azure AD acts as a bridge between your applications and external identity providers.

Here’s a simplified flow:

User attempts to access an Azure-hosted application.
Azure AD redirects the user to the external IdP (e.g., Google, Facebook, Okta, or your corporate AD FS).
The IdP authenticates the user and sends a token back to Azure AD using a protocol like OAuth or SAML.
Azure AD validates the token, issues its own token (if needed), and grants access to the application.

This approach is often called identity federation and supports Single Sign-On (SSO) capabilities.

🌐 Supported External Identity Providers in Azure

Azure AD supports a wide variety of identity providers. You can use:

Social IdPs: Google, Facebook, LinkedIn, Twitter, Microsoft
Enterprise IdPs: Active Directory Federation Services (AD FS), Okta, Ping Identity
Custom OpenID Connect or SAML 2.0 providers

These integrations are typically configured through the Azure AD B2C (Business-to-Consumer) or Azure AD Enterprise Applications portal.

⚙️ Protocols in Action

🔑 OAuth 2.0

OAuth is used primarily for authorization. When integrated with OpenID Connect, it also handles authentication. Azure AD uses this combo to allow sign-ins from platforms like Google and Microsoft accounts.

🛡️ SAML 2.0

SAML is an XML-based protocol widely used in enterprise SSO. Azure AD can be configured as a SAML service provider, allowing federated authentication from identity providers like AD FS or third-party SAML IdPs.

✅ Benefits of Federated Identity in Azure

1. Centralized Identity Management

You don’t have to manage passwords for every application. Let trusted identity providers do the work.

2. Improved Security

Tokens, not passwords, are used to grant access. You can also leverage MFA and conditional access policies through Azure AD.

3. Seamless User Experience

Users enjoy SSO across apps and services—even those hosted outside Azure.

4. Scalability and Extensibility

Azure supports both consumer-facing and enterprise federation scenarios, from small apps to global SaaS platforms.

🛠 Example Use Case: Google Sign-In with Azure AD B2C

Configure a Google OAuth 2.0 client ID.
Register Google as an identity provider in Azure AD B2C.
Create a user flow (policy) that includes Google as a login option.
Integrate your app with Azure AD B2C.

Result: Users can log in to your app using their Google credentials, without creating a separate username/password.

🧩 Best Practices

Use OpenID Connect when possible over raw OAuth for better support of identity claims.
Enable Multi-Factor Authentication (MFA) at the Azure AD level to increase security.
Monitor sign-ins and audit logs via Azure AD to detect suspicious behavior.
Apply Conditional Access policies to federated identities for adaptive security.

The Federated Identity pattern is essential for modern cloud architectures, especially in Azure. It enables organizations to authenticate users across domains, platforms, and apps—securely and efficiently.

By leveraging Azure AD and standards like OAuth and SAML, you can streamline access control while providing a seamless experience for users. Whether you’re integrating Google sign-ins for consumers or connecting to enterprise IdPs like Okta, federated identity makes identity management scalable, secure, and user-friendly.
